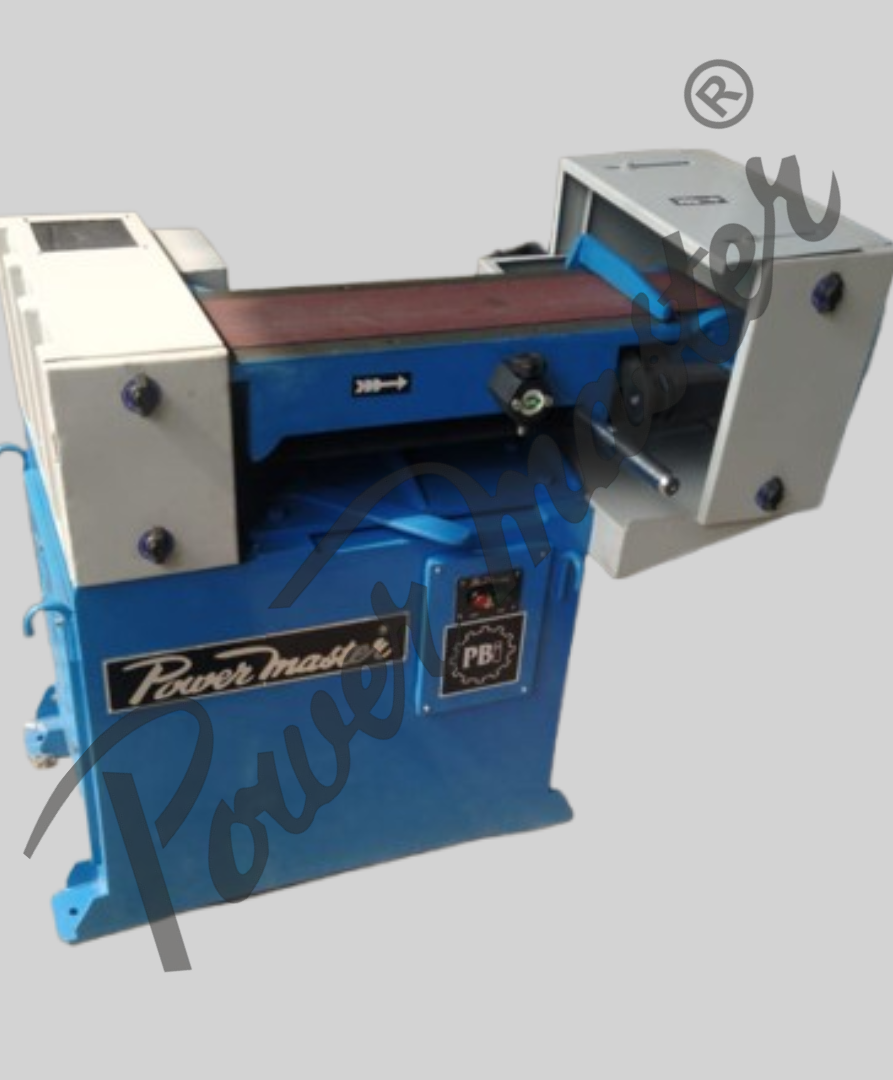

Platen
Belt Grinding Machine |
| |
| |
| |
| Platen
Belt Grinding Machine |
| |
|
|
"POWER
MASTER" This machine is Designed
for Sanding Flat side of components by manually
pressing the component on the Abrasive Belt
duly supported by a Platen.
The machine is complete with ground finish
replaceable top plate, belt guards and starters.
All roating parts are dynamically balance
for vibration free performance.
Electricals : Direct on
line Starter
Overall Dimensions :
Sl. No. 1 to 4 : L x W xH - 975 x 750 x
900
Sl. No. 5 & 6 : L x W x H - 975 x 800
x 900
Sl. No. 7 & 8 : L x W x H - 975 x 825
x 900 |
|
|
|
| Manufactured
by "Prem Brothers" Since 1959 |
| |
Technical
Specifications |
| |
| |
Sl.No |
Model |
H.P |
Sprindle
RPM |
Belt
Size |
Platen
Size |
1. |
648
Direct Drive |
2.0 |
2800 |
150
x 2000 |
275
x 615 |
2. |
648
Direct Drive |
2.0 |
1800/2400 |
200
x 1500 |
275
x 375 |
3. |
90
F-2-150 |
2.0 |
1800/2400 |
150
x 2000 |
275
x 615 |
4. |
90
F-2-200 |
2.0 |
1800/2400 |
200
x 1500 |
275
x 375 |
5.
|
100
F-2-150 |
3.0 |
1800/2400 |
150
x 2000 |
275
x 615 |
6. |
100
F-2-200 |
3.0 |
1800/2400 |
200
x 1500 |
275
x 375 |
7. |
112
F-2-150 |
5.0 |
1800/2400 |
150
x 2000 |
275
x 615 |
8. |
112
F-2-200 |
5.0 |
1800/2400 |
200
x 1500 |
275
x 375 |
|
| |
| |
| Wide
range of Machines available to suit different job requirements |
| |
| |
| Note:
We reserve the right to change. |
| Due
to constant improvement, technical specifications and
dimensions are subject to modification without prior notice. |
| |
