"POWER MASTER" Double
Ended Bench type Polishing Machines from
0.33 HP to 3.0 HP with Detachable Taper
units mounted on both sides, suitable for
operation on 415 Volt - AC - 3 phase or
220 / 230 V Single phase, 50 Cycles supply.
These Polishers are complete with detachable
taper units, four position rotary Switch,
Condenser ( only in single phase ) in the
base and connecting cable or terminal box.
|
|
|
Manufactured
by "Prem Brothers" Since 1959 |
|
Technical
Specifications |
| |
| |
S.No
|
H.P. |
Spindle
RPM |
Model |
No
of Bearings |
Overall
Length |
Base
Dimensions |
Weight
(kg's) |
1. |
0.33
to 0.75 |
2800 |
1678 |
2 |
780 |
205
x 205 |
32 |
2. |
1.0 |
2800 |
101 |
2 |
1060 |
280
x 255 |
52 |
3. |
1.0 |
1440 |
101 |
2 |
1060 |
280
x 255 |
52 |
4. |
2.0 |
2800 |
1012 |
2 |
1160 |
280
x 280 |
72 |
5. |
2.0 |
1440 |
1012 |
2 |
1170 |
330
x 280 |
80 |
6. |
3.0 |
2800 |
301/123` |
2/4 |
1220 |
330
x 280 |
92 |
7. |
3.0 |
2800 |
322 |
2 |
1370 |
240
x 280 |
100 |
|
| |
| Contd. |
| |
| |
| "POWER
MASTER" Double Ended Heavy Duty Polishing
Machines 5.0 HP to 10 HP suitable for operation
on 415 v, 3 phase 50 cycles supply ( Delta Comectted
). These Machines are Complete with Detachable Taper
units & Terminals Block but without Starter.
|
| |
| |
Technical
Specifications |
| |
| |
8. |
5.0 |
2800 |
522/524 |
2/4 |
1370 |
240
x 280 |
120 |
9. |
5.0 |
2800 |
526 |
6 |
1750 |
240
x 280 |
130 |
10. |
7.5 |
2800 |
722/724 |
2/4 |
1370 |
250
x 275 |
150 |
11. |
7.5 |
2800 |
726 |
6 |
1830 |
250
x 275 |
160 |
12. |
10.0 |
2800 |
1022/1024 |
2/4 |
1370 |
250
x 275 |
170 |
|
| |
| |
| |

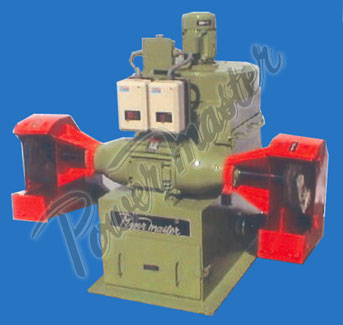

Polishing
Machine with Built in Dust Collectors |
|
Manufactured
by "Prem Brothers" Since 1959 |
Manufactured
by "Prem Brothers" Since 1959 |
|
| |

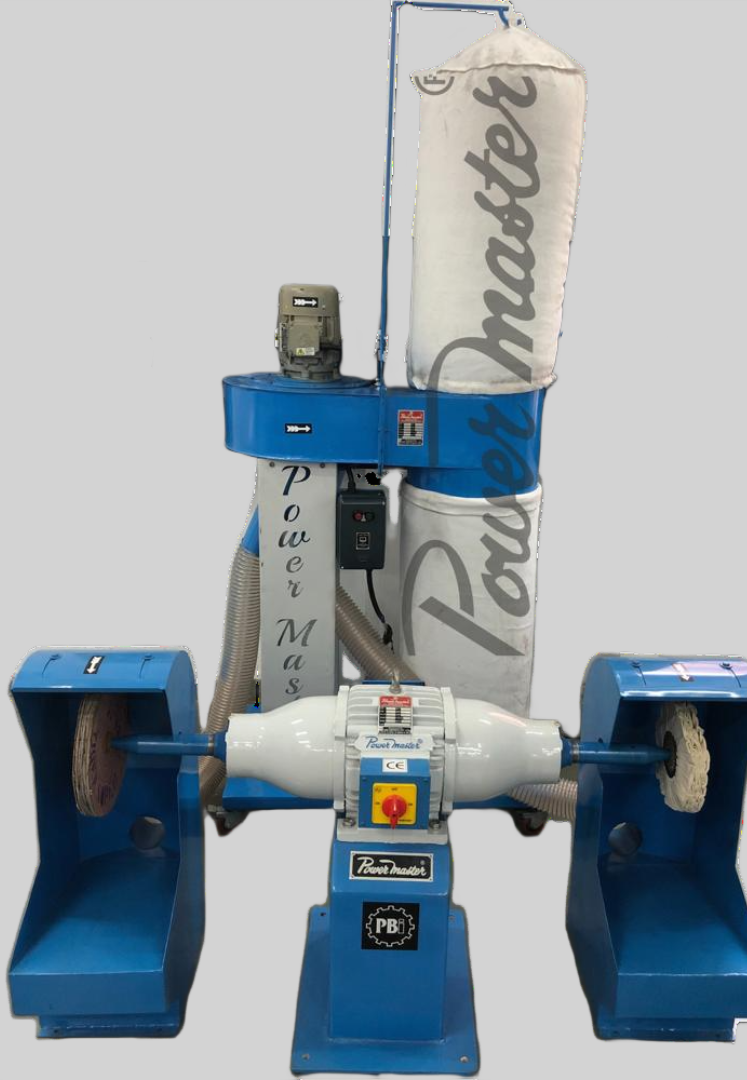

"POWER
MASTER" These
Machines are specially designed for the purpose
of Controlling Dust. Here the Polishing Machine
is mounted on a Steel Body with an in built Dust
Collector making the machine compact and inexpensive.
Features :
Polishing Machine Details : -
Polishing Head - 2.2 KW / 3 H.P / 3 PH.
2800 RPM.
Buff Guards - 2 Nos. As per job requirement.
Electricals - Dol Starters
Dust Collectors Details : -
Electric Motor 1.5 KW / 2 HP
Dust Tray ( At the bottom of the steels frame)
Filters - Removable - 2 Nos.
Filter Bag- 1 No.
Overall Dimensions Apprx. L-1500 x W-950 x H-1350
Approximate Weight - 250 K.G. |
| |
| Wide
range of Machines available to suit different job
requirements |
| |
|
| Twin
Buff Polishing Machine |
|
| |
|
 |
"Power Master" Twin Buff
Polishing Machine is specially designed
for finishing of square/Rectanglar Section,Pipes,
Files etc.
|
Manufactured
by "Prem Brothers" Since 1959 |
| |
Technical
Specifications |
Machine
Fitted with two Nos. Buffs.
Centre distance vertically adjustable.
2 Nos. 2 HP Poloshing Heads
Maximum Job Width - 75
mm
Maximum Job Height - 100
mm
Electricals - Machine
duly wired fitted with DOL strarters
Over all Dimensions - L
x W x H 100 mm x600 mm x140 mm
Approx. Weight : Apprx 400 KG.
Model : P-1012/3 |
| |
|
| |
|
| |
|
| |
|
| Direct
Drive Tool Post Grinding Polishing Machines |
 |
Application
For use on Lathes, Shapers,
Planner Machines etc. for operations
like cylendrical External Grinding,
Face/Radius/Surface Grinding.
Constructions
Heavy Duty Direct Drive head
complete with Motor, Bearing loaded
Spindle, Sturdy Guard & Mounting
Plate. |
|
|
| Manufactured
by "Prem Brothers" Since 1959 |
| |
|
| |
|
| Single
Ended Polishing Machine with Integral Dust
Collector |
 |
|
| Manufactured
by "Prem Brothers" Since 1959 |
| |
|
| |
|
| |
|
| Double
Ended Sole Buffing Machine |
 |
|
| Manufactured
by "Prem Brothers" Since 1959 |
| |
|
| |
|
| |
|
| |
|
|
| |
| Note:
We reserve the right to change. |
| Due
to constant improvement, technical specifications
and dimensions are subject to modification without
prior notice. |
